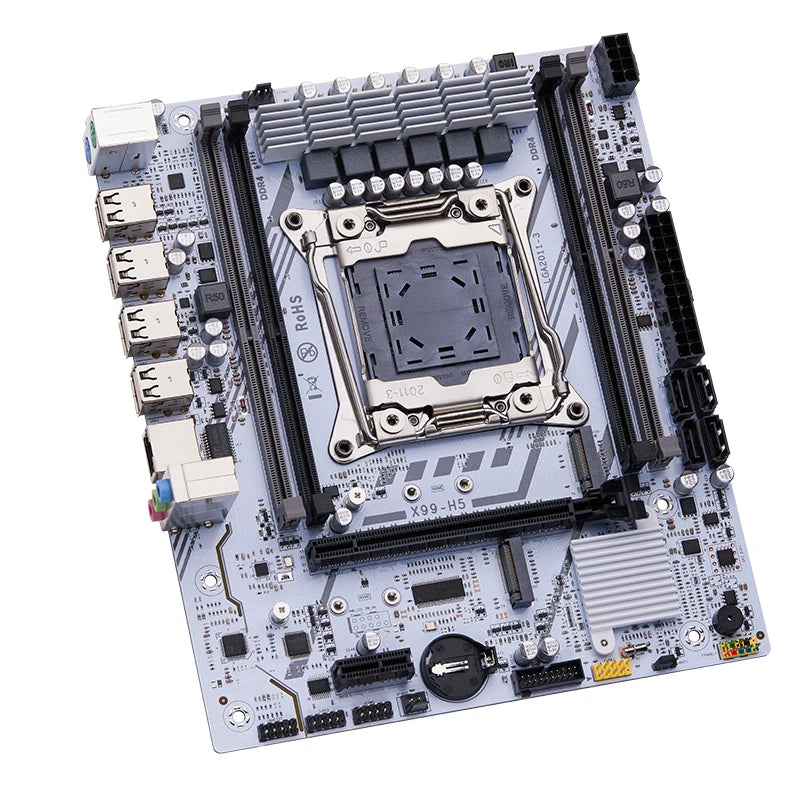

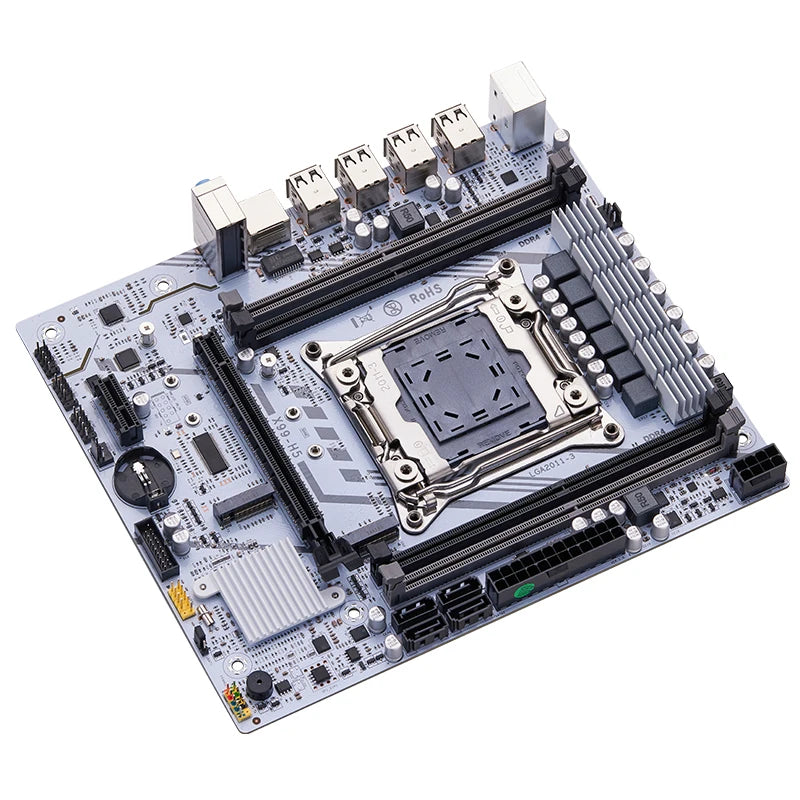

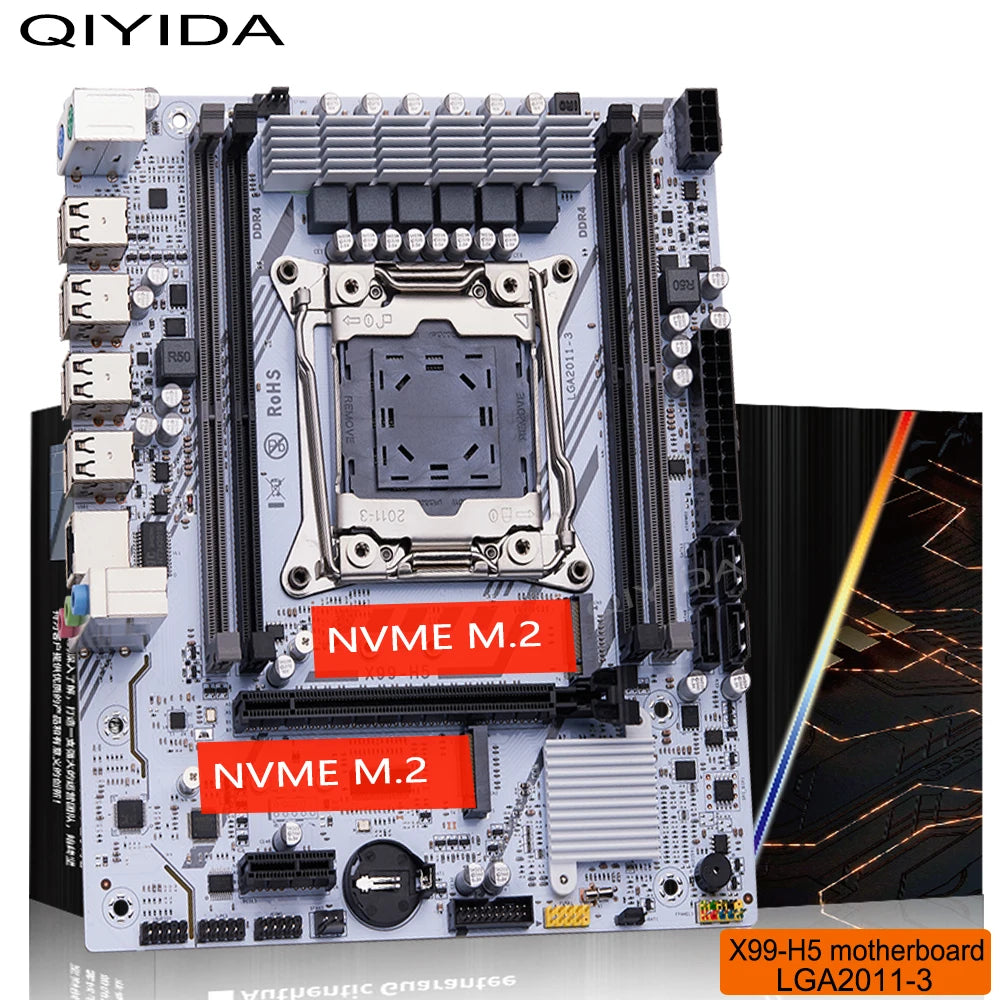

QIYIDA X99 Motherboard LGA 2011 3 Xeon CPU E5 V3 V4 DDR4 RAM NVME M.2 PCI3.0 16X SATA M-ATX
Notice：
ALL RAM needs to install in slot (grey slot)priority
The front USB needs to be correctly inserted into the designated USB pin position (yellow pin).
If inserted in the wrong location, it can cause the computer to not start.
Attention: A 2032 battery needs to be installed to start the computer, otherwise it cannot be started

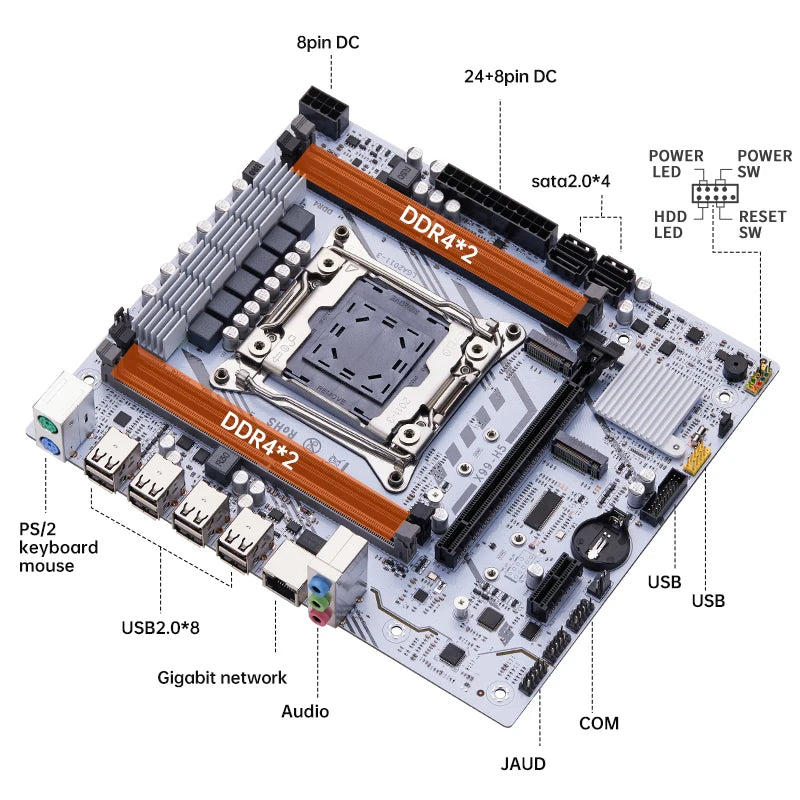

X99 motherboard slot LGA2011-3 SATA USB2.0 NVME M.2 SSD support DDR4 REG ECC memory and Xeon E5 V3 V4 processor
Model: Qiyida
Chipset: H55/H51
Condition: Full new
CPU socket: LGA 2011-3
Structure: M-ATX
VGA socket: PCI-E X 16
Power port: 24Pin+8pin
CPU supported:Support 2011-3 All-series CPU( Include V3, V4 series)
Memory socket: 4* DDR4
Max memory capacity: 4* 32G DDR4 2133/2400MHz/2666MHz/3200MHz
Memory type supported: non-ecc/reg ecc/ecc
Integrated video card: No
Support NVME M.2
Motherboard dimension: 22cm*19cm

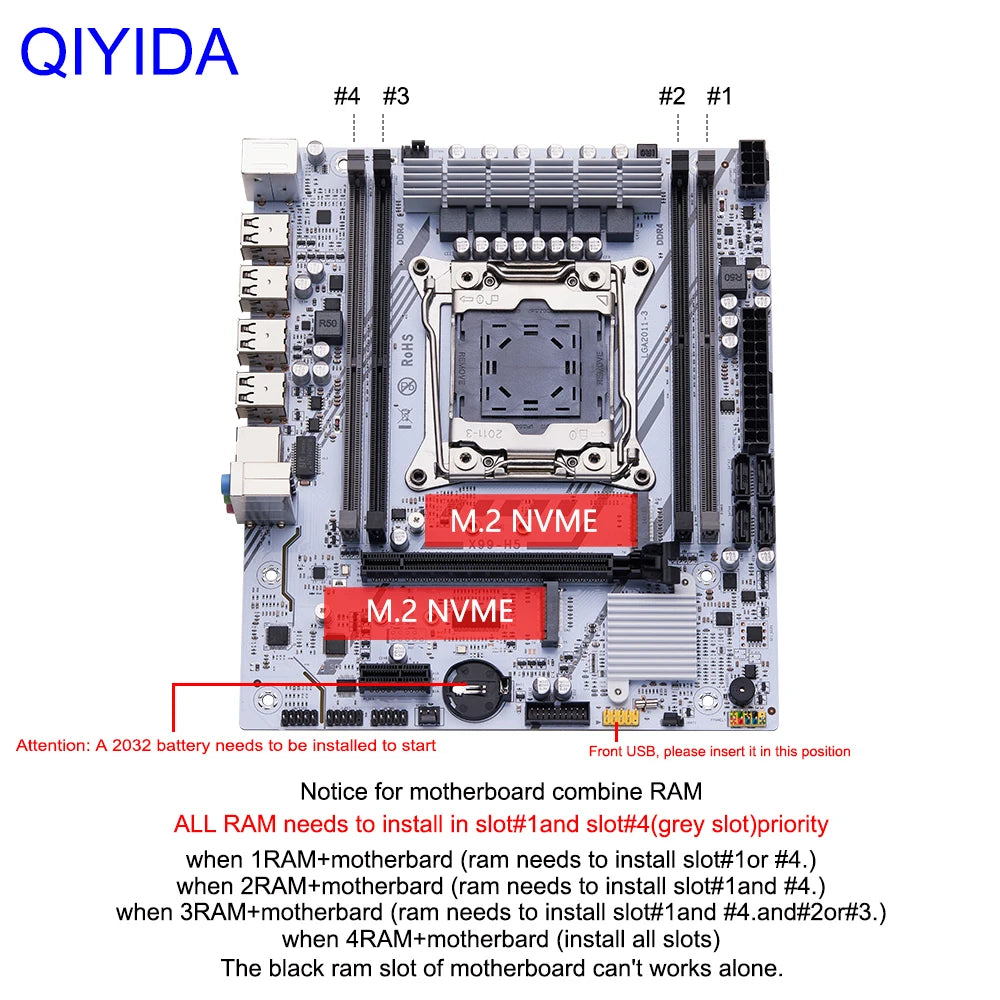

Notice for motherboard combine RAM
ALL RAM needs to install in slot#1and slot#4(grey slot)priority
when 1RAM+motherbard (ram needs to install slot#1or #4.)
when 2RAM+motherbard (ram needs to install slot#1and #4.)
when 3RAM+motherbard (ram needs to install slot#1and #4.and#2or#3.)
when 4RAM+motherbard (install all slots)
The black ram slot of motherboard can't works alone.The memory needs to be inserted into the grey main slot first.
